Flush Bottom Ball Valves

Get high-quality sanitary flush bottom tank valves in stainless steel. Our flush bottom valves ensure efficient drainage and smooth flow control.

What is a Flush Bottom Ball Valve?

A Flush Bottom Ball Valve is a tank-mounted ball valve designed to sit flush with the tank bottom, combining the reliable sealing of a ball valve with complete, residue-free drainage. Available in full bore and reduced bore designs, it’s built in CF8, CF8M, or CF3M (special alloys on request), with PTFE, CFT, or GFT seal options. As a leading flush bottom valve manufacturer, 4ma Valves Automation offers manual, pneumatic (D/A & S/A actuator), or motorized operation. Explore our Valves range or compare with our Sanitary Ball Valve.

Key Features of 4MA Flush Bottom Ball Valve

• Full bore and reduced bore ball valve designs available
• Material of construction: CF8, CF8M, CF3M (special alloys on request)
• Seals: PTFE, CFT, or GFT
• Operation: Manual (lever & gear box), Pneumatic (D/A & S/A actuator), or Motorized
• Sizes: 1½” to 12” (40mm to 300mm)
• Working pressure up to 10 kg/cm²
• Temperature rating up to 250°C
• Leakage class: VI
• Connection: ASME B16.5 150# or 300#
• Suitable media: Air, Water, Oil, Powder, Vacuum

Applications of Flush Bottom Ball Valve

As a trusted flush bottom tank valve supplier, 4ma Valves Automation serves reactors, mixing vessels, storage tanks, filter dryers, and process vessels across pharmaceutical, food, chemical, and cosmetic industries where complete drainage without residue buildup is critical.

Benefits of Flush Bottom Ball Valve

• Flush mounting eliminates dead legs and residue accumulation
• Full bore design allows unrestricted, high-capacity flow
• Wide temperature and pressure ratings suit demanding processes
• Multiple operation types support manual or fully automated setups
• High leakage class VI ensures tight, reliable shut-off
• Geometric mounting pad design promotes smooth flow and prevents media stagnation

Working of Flush Bottom Ball Valve

The Flush Bottom Ball Valve is mounted directly at the base of a tank or vessel, with its geometric mounting pad ensuring a smooth transition between tank and valve. The ball, positioned within the valve body, rotates 90 degrees to open or close the flow path. In the open position, the ball’s bore aligns flush with the tank outlet, allowing complete, unobstructed drainage of the tank’s contents without leaving pockets where product could stagnate. Rotating the ball a quarter-turn — manually, pneumatically, or via motorized actuator — closes the valve, sealing tightly against the PTFE or CFT seat.

Types of Flush Bottom Ball Valve Offered by 4MA

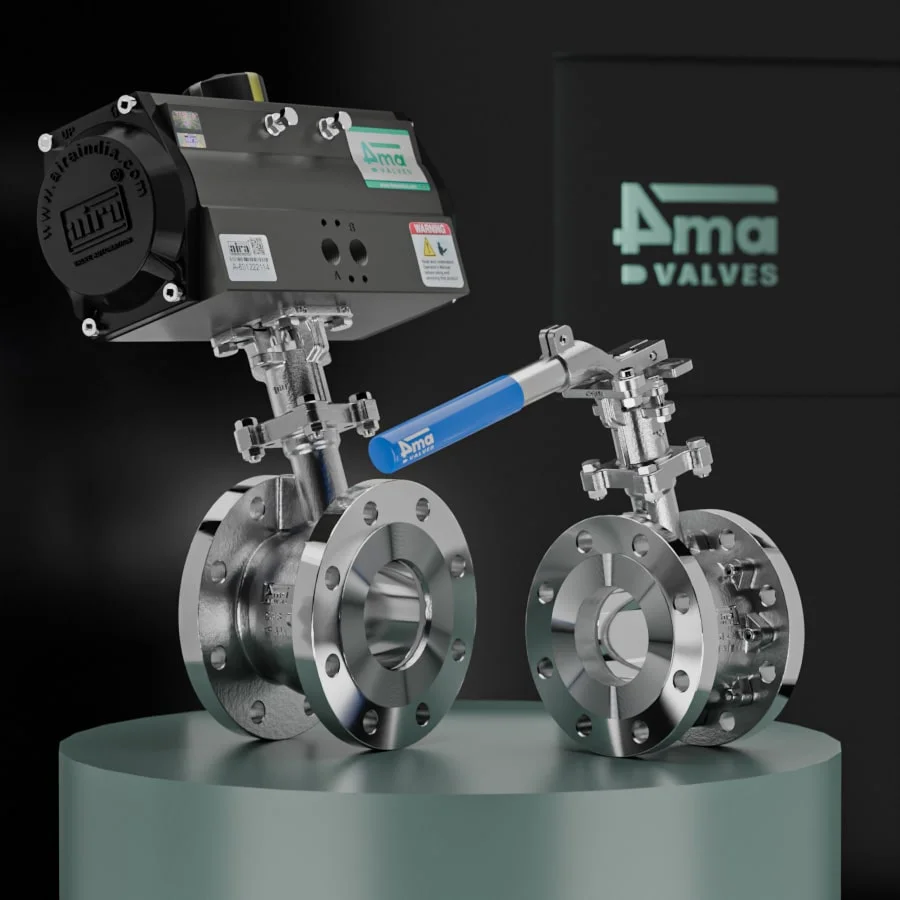

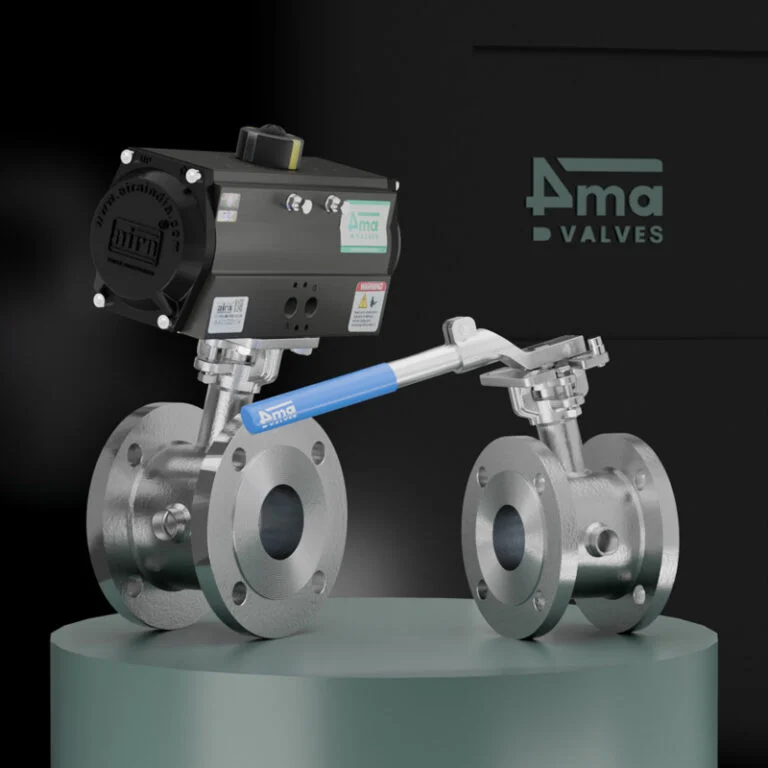

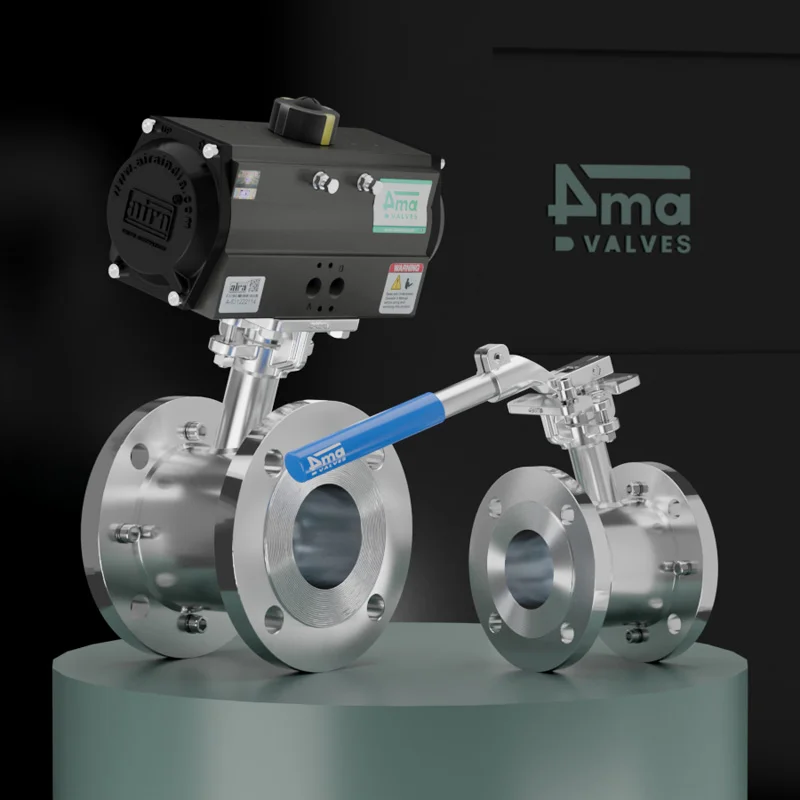

• Full Bore Flush Bottom Valve – Offers an unrestricted flow path matching the pipe diameter for maximum drainage capacity.

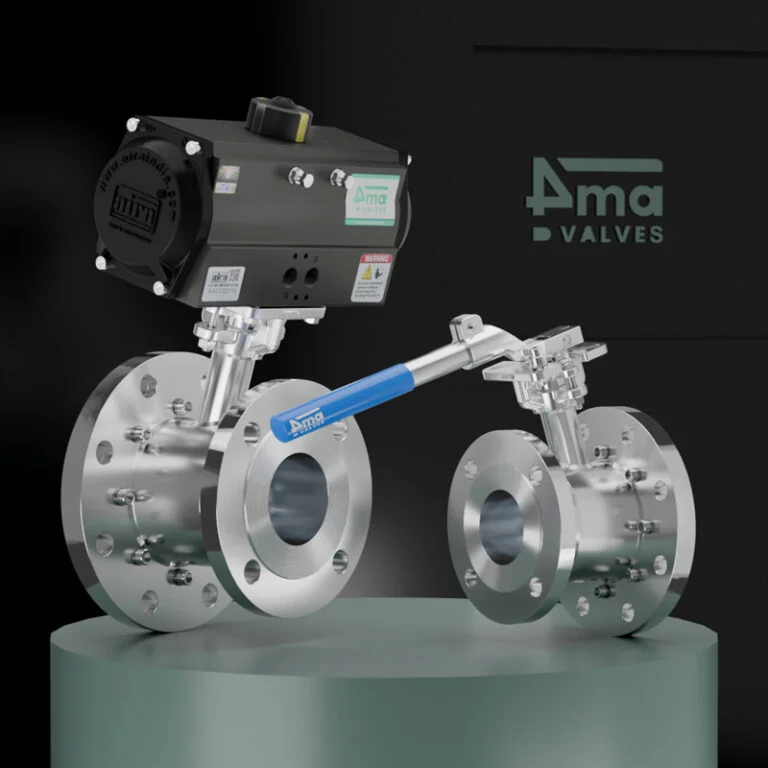

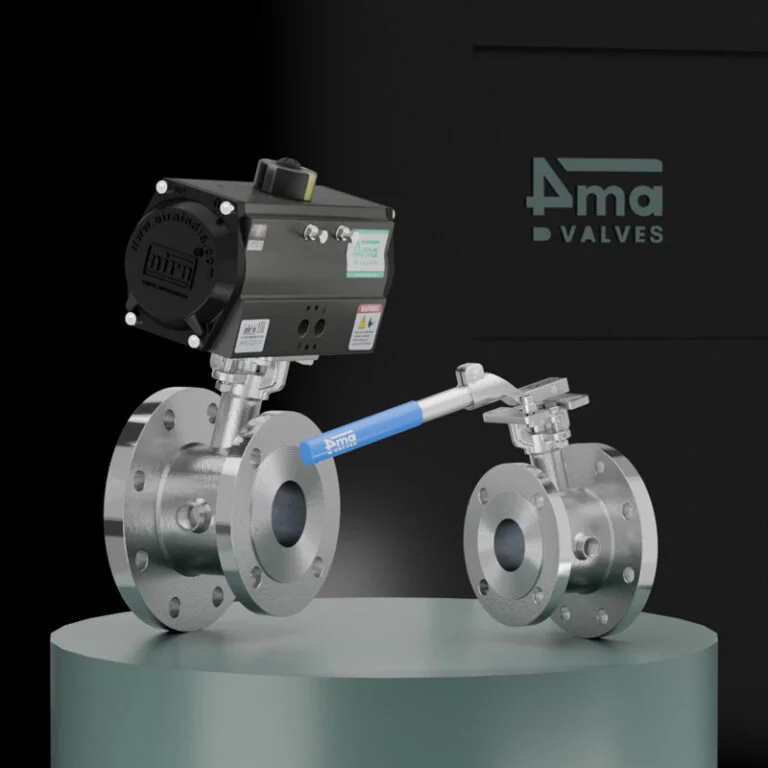

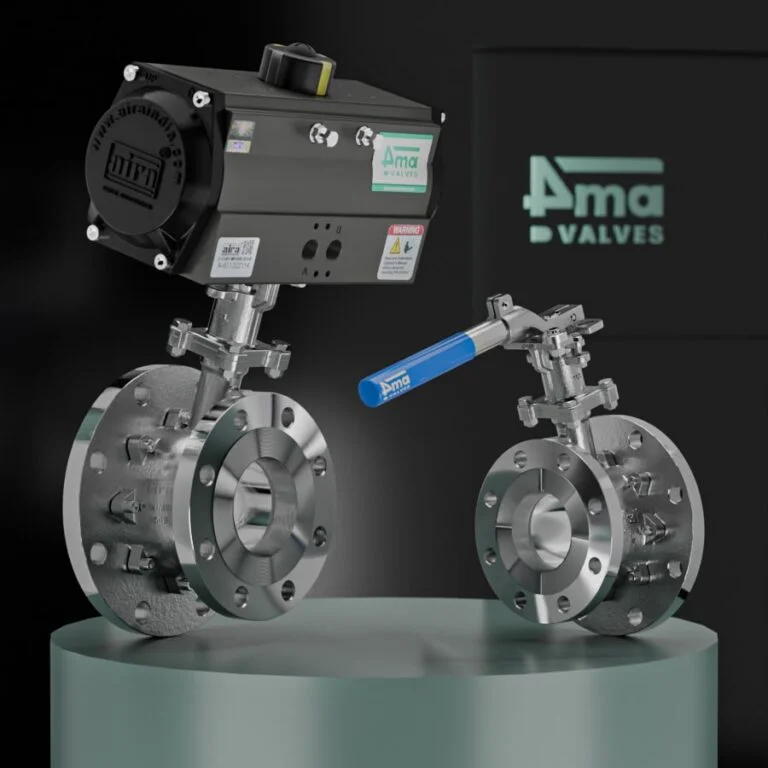

• Reduced Bore Flush Bottom Valve – Uses a smaller ball bore, suited to applications where full flow capacity isn’t required.

Why Choose 4ma Valves Automation?

As India’s leading flush bottom valve exporter and manufacturer, 4ma Valves Automation delivers stainless steel flush bottom ball valves engineered for efficient drainage and smooth flow control. With multiple operation types, a wide pressure and temperature range, and years of experience serving pharmaceutical, food, and chemical industries, we deliver valves built for dependable, long-term performance.

Explore our Valves range, or Get a Quote today.
